Availability: | |
---|---|
Quantity: | |

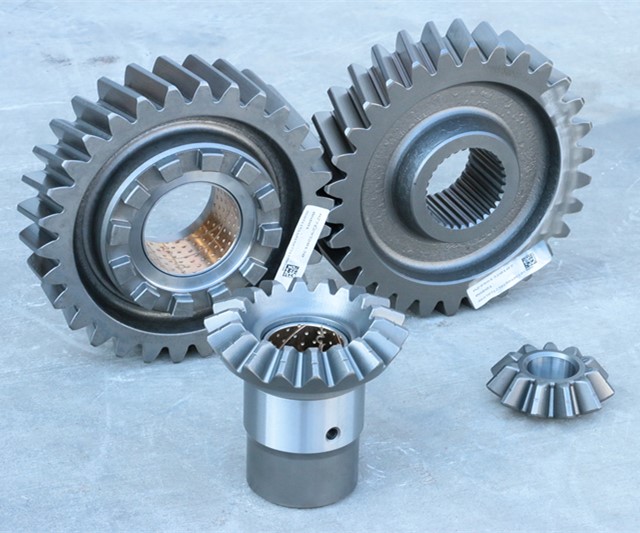

Cylindrical Gear
20CrMnTi; 40Cr; 42CrMo; C40; SAE8620H
Hobbing & shaving & grinding
Transmission
Carburizing
OEM, CNC Machining, CNC Turning, CNC, Precision Forging, Gear Set Helical gears are cylindrical gears with helical teeth cutted around the circumference. Helical gears are most applied gears in all kinds of indsutrial transmission, with the characteristics of smooth transmission, low noise, and high efficiency. Helical gears usually have an operating efficiency of 98% to 99%. Compared with spur gear, helical gear has more meshing area and loading capacity, which makes it having much longer serving life. Nowadays, hobbing, shaving, shaping, and grinding are mostly applied in the production of helical gears. And for helical gears, we can supply: 1. Material: 20CrMnTi, 42CrMo, Stainless Steel, Brass, Plastic, Nylon, Aluminium, etc. |
Production Characteristics

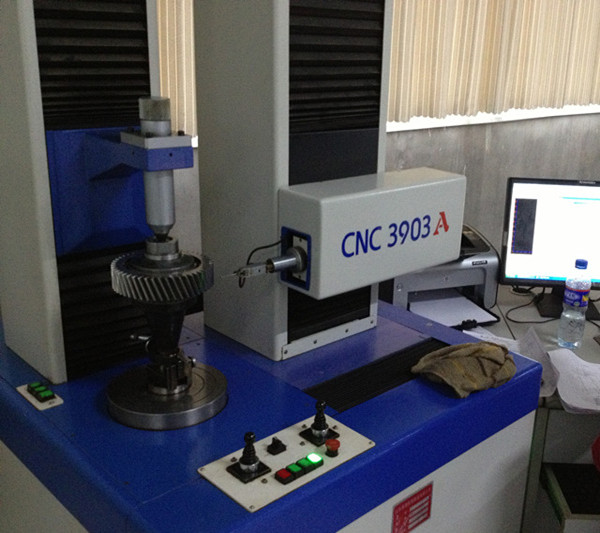

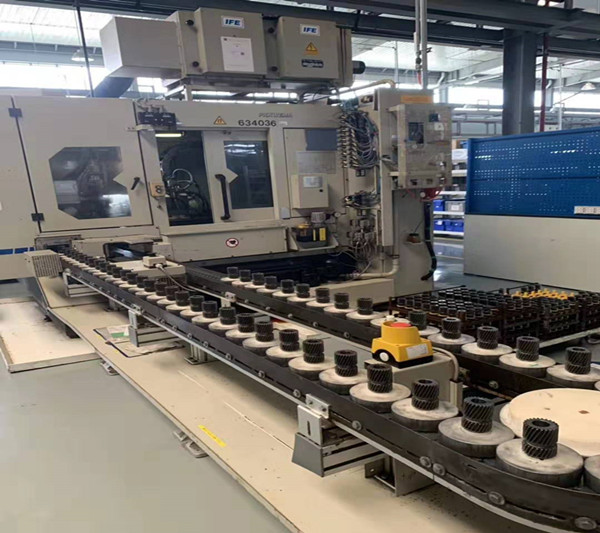

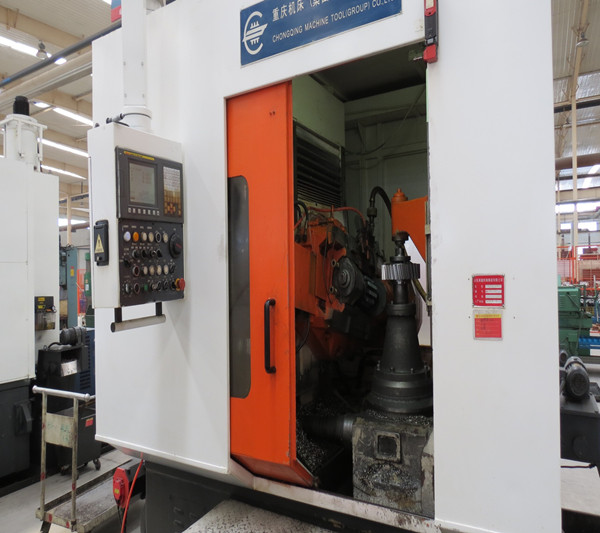

Teeth Profile Inspection | High Speed Hobbing | Auto Production Line |
Specifications & Capabilities
Gear Type | Material | Heat Treatment | Process | Grade | MAX O.D./mm | Module/mm |
Spur&Helical Gear | 20CrMnTi,C40,C45, 40Cr,42CrMo, Aluminium Alloy, Stailess Steel 304/316, SAE8620H | Carburizing,Nitriding, Quenching&Tempering, Induction Hardening, Normalizing | Hobbing | DIN8 | 200 | 1-32 |
Shaving | DIN7 | 200 | 1-8 | |||
Shaping | DIN8 | 400 | 1-7 | |||
Broacing | DIN7 | 400 | 1-7 | |||
Grinding | DIN5 | 300 | 1-7 | |||
Straight bevel Gear | Precision Forging | DIN8 | 200 | 1.5-10 | ||
Cold Extrusion | DIN8 | 90 | 1.5-6 | |||
Cutting | DIN8 | 300 | 1.5-10 | |||
Spiral Bevel Gear | Milling | DIN7 | 600 | 1-15 | ||
Grinding | DIN5 | 300 | ||||
Spline Shaft | Hobbing | DIN8 | L600 | 0.5-2 | ||
Grinding | DIN5 | L260 |
Production Flow

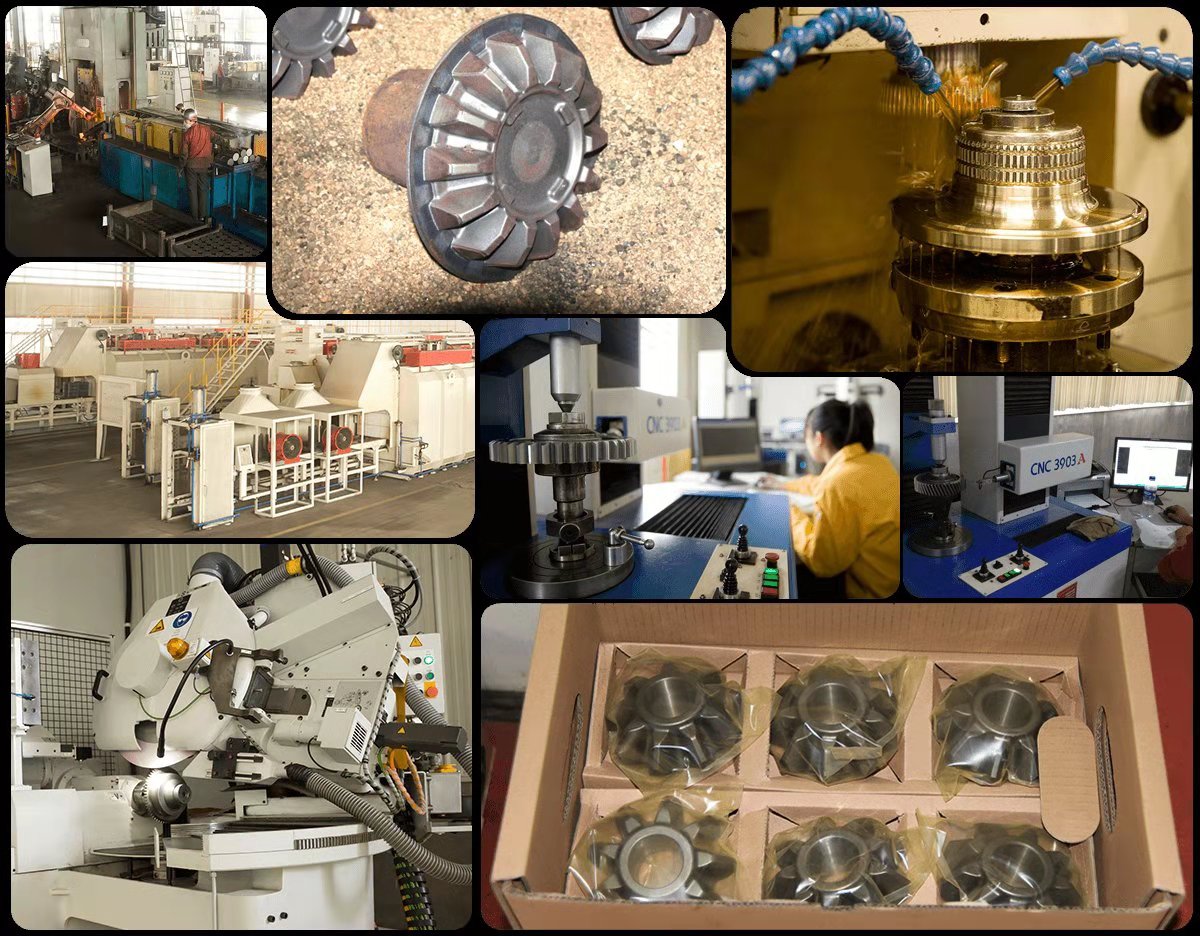

Plant Gallery
OEM, CNC Machining, CNC Turning, CNC, Precision Forging, Gear Set Helical gears are cylindrical gears with helical teeth cutted around the circumference. Helical gears are most applied gears in all kinds of indsutrial transmission, with the characteristics of smooth transmission, low noise, and high efficiency. Helical gears usually have an operating efficiency of 98% to 99%. Compared with spur gear, helical gear has more meshing area and loading capacity, which makes it having much longer serving life. Nowadays, hobbing, shaving, shaping, and grinding are mostly applied in the production of helical gears. And for helical gears, we can supply: 1. Material: 20CrMnTi, 42CrMo, Stainless Steel, Brass, Plastic, Nylon, Aluminium, etc. |
Production Characteristics
Teeth Profile Inspection | High Speed Hobbing | Auto Production Line |
Specifications & Capabilities
Gear Type | Material | Heat Treatment | Process | Grade | MAX O.D./mm | Module/mm |
Spur&Helical Gear | 20CrMnTi,C40,C45, 40Cr,42CrMo, Aluminium Alloy, Stailess Steel 304/316, SAE8620H | Carburizing,Nitriding, Quenching&Tempering, Induction Hardening, Normalizing | Hobbing | DIN8 | 200 | 1-32 |
Shaving | DIN7 | 200 | 1-8 | |||
Shaping | DIN8 | 400 | 1-7 | |||
Broacing | DIN7 | 400 | 1-7 | |||
Grinding | DIN5 | 300 | 1-7 | |||
Straight bevel Gear | Precision Forging | DIN8 | 200 | 1.5-10 | ||
Cold Extrusion | DIN8 | 90 | 1.5-6 | |||
Cutting | DIN8 | 300 | 1.5-10 | |||
Spiral Bevel Gear | Milling | DIN7 | 600 | 1-15 | ||
Grinding | DIN5 | 300 | ||||
Spline Shaft | Hobbing | DIN8 | L600 | 0.5-2 | ||
Grinding | DIN5 | L260 |
Production Flow
Plant Gallery
