|TS Certified Gear Manufacturing Company Striaght Bevel Gear |
Bevel gears are gears applied with a 90°shaft angle. Bevel gears are commonly applied in many kinds of transmission fields, such as truck axle differential, industrial gear reducer, agricultural machinery, construction machinery, etc. Straight bevel gear is a kind of bevel gear with straight tooth, and can be manufactured through teeth shaping or precision forging.
In our plant, we are applying precision forging, cold extrusion, and also teeth shaping in the production of straight bevel gears, according to different quantities and precision grade requirements.
And for straight bevel gears, we can supply:
1. Material: 20CrMnTi, 42CrMo, Stainless Steel, Brass, Plastic, Nylon, Aluminium, etc.
3D Simulation for Mold

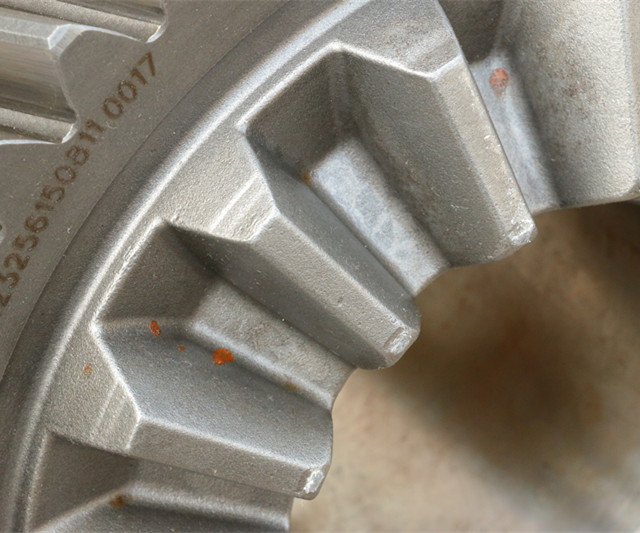

Precision Forged Tooth
Specifications & Capabilities
|Gear Type||Material||Heat Treatment||Process||Grade||MAX O.D./mm||Module/mm|
|Spur&Helical Gear||20CrMnTi,C40,C45, 40Cr,42CrMo, Aluminium Alloy, Stailess Steel 304/316, SAE8620H||Carburizing,Nitriding, Quenching&Tempering, Induction Hardening, Normalizing||Hobbing||DIN8||200||1-32|
|Straight bevel Gear||Precision Forging||DIN8||200||1.5-10|
|Spiral Bevel Gear||Milling||DIN7||600||1-15 |
