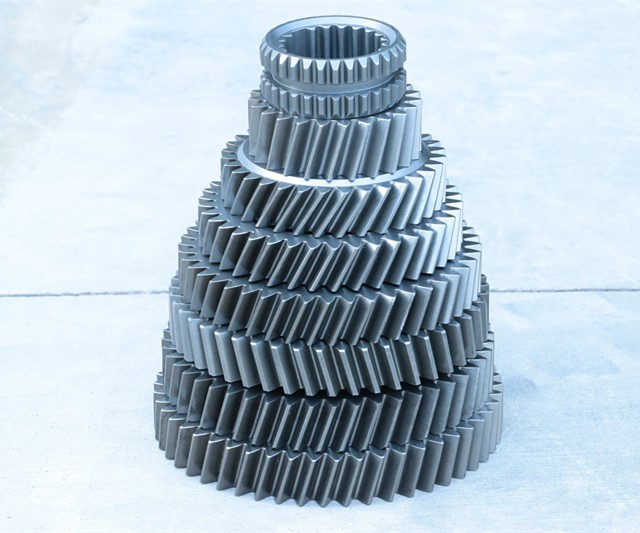

CNC High Precision Customized Engine Gearbox Helical Gear Spur Gear

loading

Share to:
sharethis sharing button
CNC High Precision Customized Engine Gearbox Helical Gear Spur Gear
We can produce high precision gears according to customers' drawings and samples.
Availability:
Quantity:
  • Cylindrical Gear

  • 20CrMnTi; 40Cr; 42CrMo; C40; SAE8620H

  • Hobbing & shaving & grinding

  • Transmission

  • Carburizing

CNC High Precision Customized Engine Gearbox Helical Gear Spur Gear

CNC High Precision Customized Engine Gearbox Helical Gear Spur Gear

Helical gears are cylindrical gears with helical teeth cutted around the circumference.  Helical gears are most applied gears in all kinds of indsutrial transmission, with the characteristics of smooth transmission, low noise, and high efficiency. Helical gears usually have an operating efficiency of 98% to 99%.

Compared with spur gear, helical gear has more meshing area and loading capacity, which makes it having much longer serving life. Nowadays, hobbing, shaving, shaping, and grinding are mostly applied in the production of helical gears.

And for helical gears, we can supply:

1. Material: 20CrMnTi, 42CrMo, Stainless Steel, Brass, Plastic, Nylon, Aluminium, etc.
2. Moudle:M0.4-M32; Max O.D.: 400mm.
3. Surface Treatment: Phophatizing, Galvanizing, Black oxide, Sand-blasting or as your requirements.
4. Heat treatment: Hardening and Tempering, Induction Hardening, Carburizing& Quenching, Nitriding, Normalizing.
5. Gears can be manufactured according to clients' drawings and specifications.
6. Gears precision grade can be reached to DIN5 to DIN8.


Production Characteristics

IMG_1614_副本_副本

Teeth Profile Inspection


QQ图片20190731155354_副本

High Speed Hobbing


微信图片_2019080613590511_副本

Auto Production Line

Specifications & Capabilities

gear data

Production Flow

production flow

Plant Gallery

微信图片_20190806111246
