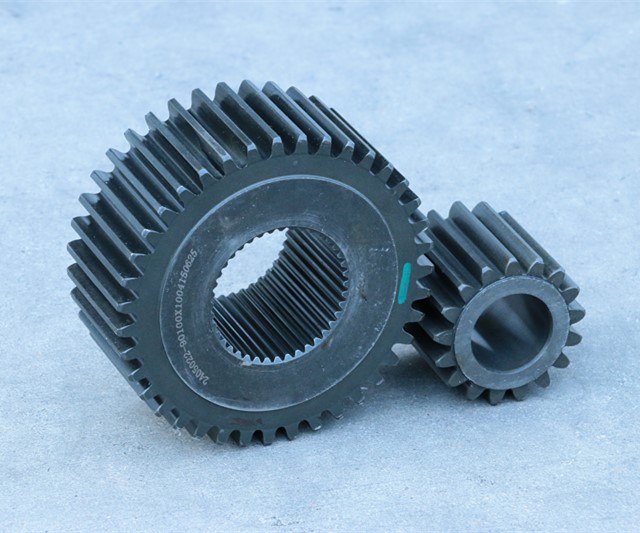

OEM Sun and Planet Gear Harmonic Gear
We can produce high precision gears according to customers' drawings and samples.
Availability:
Quantity:
  • Cylindrical Gear

  • 20CrMnTi; 40Cr; 42CrMo; C40; SAE8620H

  • Hobbing & shaving & grinding

  • Transmission

  • Carburizing

OEM Sun and Planet Gear Harmonic Gear

 OEM Sun and Planet Gear Harmonic Gear

Helical gears are cylindrical gears with helical teeth cutted around the circumference.  Helical gears are most applied gears in all kinds of indsutrial transmission, with the characteristics of smooth transmission, low noise, and high efficiency. Helical gears usually have an operating efficiency of 98% to 99%.

Compared with spur gear, helical gear has more meshing area and loading capacity, which makes it having much longer serving life. Nowadays, hobbing, shaving, shaping, and grinding are mostly applied in the production of helical gears.

And for helical gears, we can supply:

1. Material: 20CrMnTi, 42CrMo, Stainless Steel, Brass, Plastic, Nylon, Aluminium, etc.
2. Moudle:M0.4-M32; Max O.D.: 400mm.
3. Surface Treatment: Phophatizing, Galvanizing, Black oxide, Sand-blasting or as your requirements.
4. Heat treatment: Hardening and Tempering, Induction Hardening, Carburizing& Quenching, Nitriding, Normalizing.
5. Gears can be manufactured according to clients' drawings and specifications.
6. Gears precision grade can be reached to DIN5 to DIN8.

Production Characteristics

IMG_1614_副本_副本

Teeth Profile Inspection


QQ图片20190731155354_副本

High Speed Hobbing


微信图片_2019080613590511_副本

Auto Production Line

Specifications & Capabilities

Gear Type Material Heat Treatment Process Grade MAX O.D./mm Module/mm
Spur&Helical Gear 20CrMnTi,C40,C45, 40Cr,42CrMo,     Aluminium Alloy, Stailess Steel 304/316, SAE8620H Carburizing,Nitriding, Quenching&Tempering,  Induction Hardening, Normalizing Hobbing DIN8 200 1-32
Shaving DIN7 200 1-8
Shaping DIN8 400 1-7
Broacing DIN7 400 1-7
Grinding DIN5 300 1-7
Straight bevel Gear Precision Forging DIN8 200 1.5-10
Cold Extrusion DIN8 90 1.5-6
Cutting DIN8 300 1.5-10
Spiral Bevel Gear Milling DIN7 600 1-15
Grinding DIN5 300
Spline Shaft Hobbing DIN8 L600 0.5-2
Grinding DIN5 L260

Production Flow

production flow
