Inner Gear

Share to:

Internal Gear Ring
We supply internal gear ring products applied in hub reduction and transmission assembly for trucks, construction machineries, and many other fields.

Teeth Number:
Pressure Angle:
Module:
Quantity:
  • Internal Gear
  • C45
  • Broaching
  • Hub reduction; automobile; construction machinery
  • Nitriding
IMG_3492_副本

Internal Gear

Internal gear ring is widely applied in the plantery transmission for trucks, construction machineries, wind power and many other applications. With the help of high tonnage vertical broaching machine and self-made broaching cutting tools, we are able to provide internal gears with out diameter of 400mm. Shaping process is also applied in our factory for internal gears with small quantity or gears not suitable for broaching.

Production Characteristics

拉齿broaching_副本

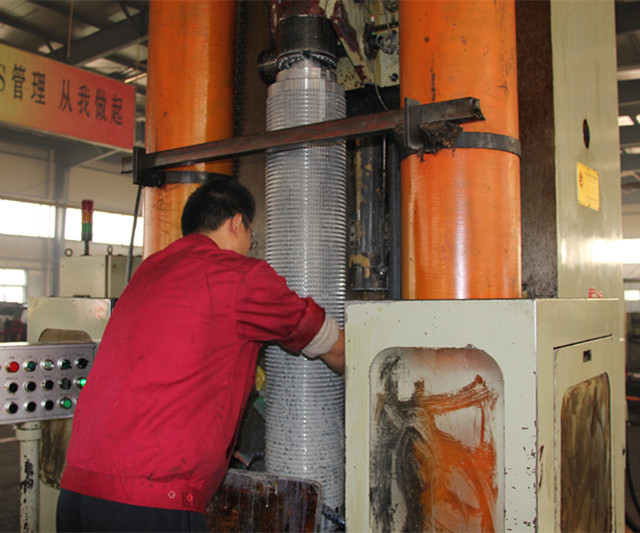

Vertical Broaching


IMG_3499_副本

Teeth Broached


独立的刀具制作_副本

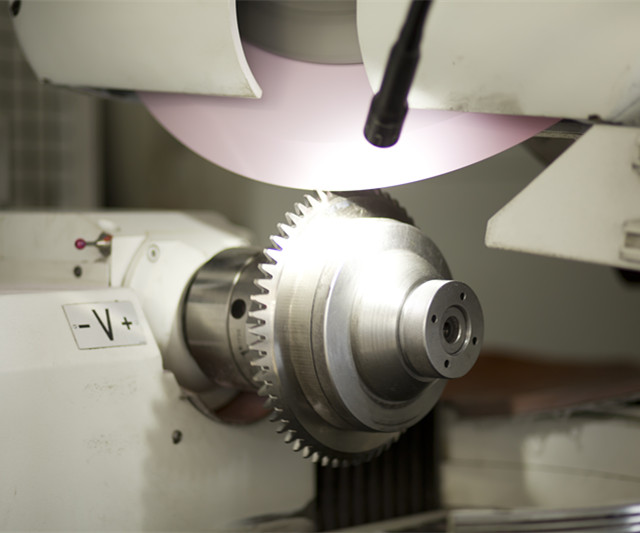

Tool Manufacturing

Production Flow

production flow

Specifications & Capabilities

gear data

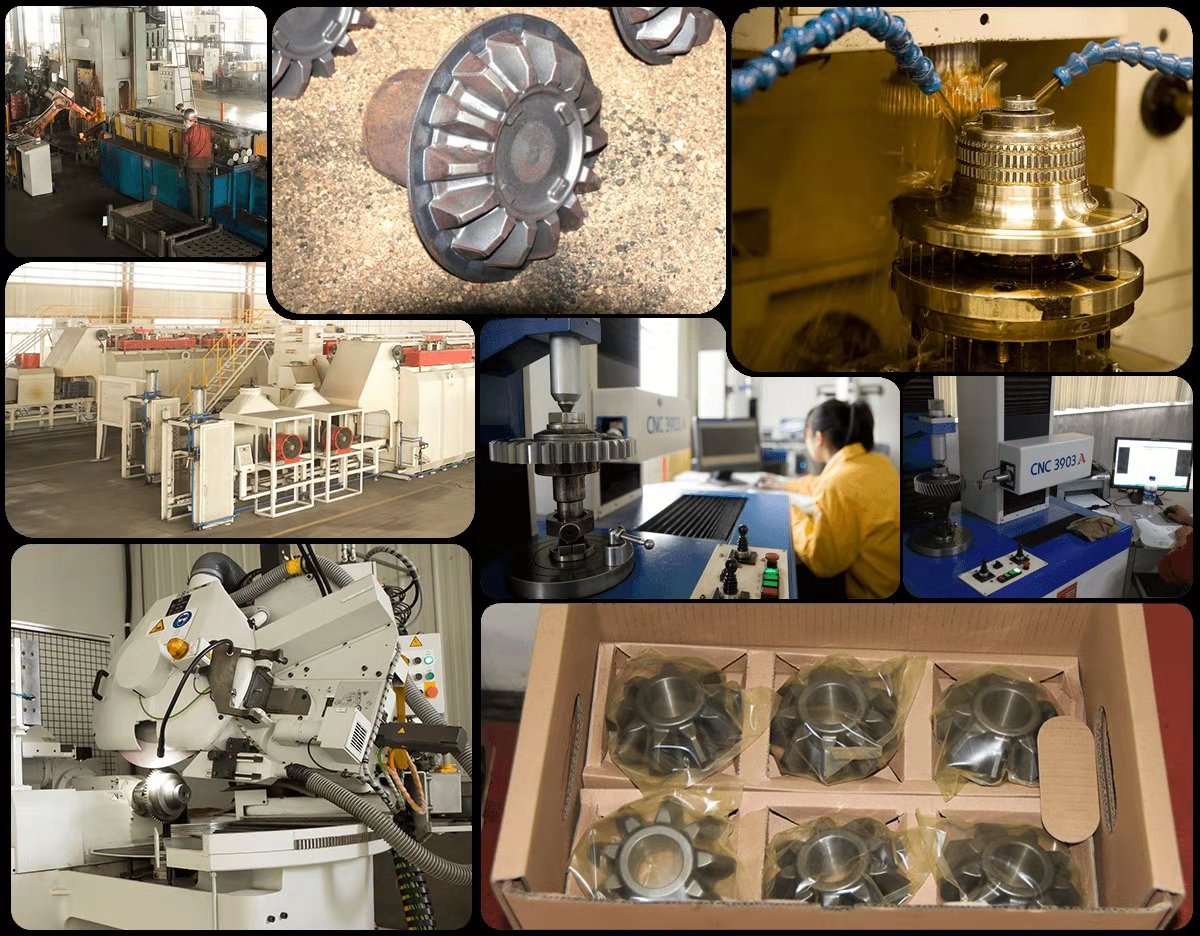

Plant Gallery

微信图片_20190806111246
