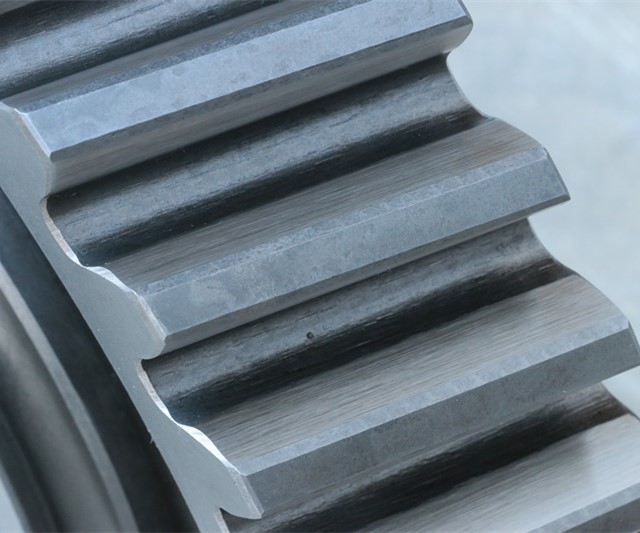

High Precision Customized Transmission Gear Cylindrical Gear

 High Precision Customized Transmission Gear Cylindrical Gear

Helical gears are cylindrical gears with helical teeth cutted around the circumference.  Helical gears are most applied gears in all kinds of indsutrial transmission, with the characteristics of smooth transmission, low noise, and high efficiency. Helical gears usually have an operating efficiency of 98% to 99%.

Compared with spur gear, helical gear has more meshing area and loading capacity, which makes it having much longer serving life. Nowadays, hobbing, shaving, shaping, and grinding are mostly applied in the production of helical gears.

And for helical gears, we can supply:

1. Material: 20CrMnTi, 42CrMo, Stainless Steel, Brass, Plastic, Nylon, Aluminium, etc.
2. Moudle:M0.4-M32; Max O.D.: 400mm.
3. Surface Treatment: Phophatizing, Galvanizing, Black oxide, Sand-blasting or as your requirements.
4. Heat treatment: Hardening and Tempering, Induction Hardening, Carburizing& Quenching, Nitriding, Normalizing.
5. Gears can be manufactured according to clients' drawings and specifications.
6. Gears precision grade can be reached to DIN5 to DIN8.

Teeth Profile Inspection

High Speed Hobbing

Auto Production Line
